Descrizione del prodotto
Standard:
Disegno | API 609 / BS5155 / EN593 / GB/T12238 / DIN3354 |
Faccia a faccia | API609 / DIN3202 K1 / BS5155 / EN558 / ISO5752 / ASME B16.10 |
Estremità Della flangia | IL CODICE CATEGORIA del CODICE CATEGORIA 125 / ASME B16.5 di ASME B16.1 150 / ASME B16.47 / en 1092 PN6/PN10/PN16 / JIS la B 2220 5K/10K/16K / BS 10 delle BS pospone D/Table E |
Flangia superiore | ISO5211 (secondo i bisogni del cliente) |
Controllo | API598 / EN12266-1 |
Materiale:
CORPO | Ci, DI, WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, C95400, C95800, SAF2205, SAF2507, F51, 1.4529^^ |
DISCO | CF8, 304, CF3, 304L CF8M, 316, CF3M, 316L, SAF2205, SAF2507, F51, 1.4529, C95400, C95500, C95800, MONEL^. |
SEDE | BUNA-N, NBR, EPDM, HYPALON, NEOPRENE, VITON, FKM, PTFE, RPTFE, TEFLON, RUBBER^^ NATURALE |
GAMBO | F410, F420, F430, F431, F304, F316, MONEL 400, MONEL K500^^ |

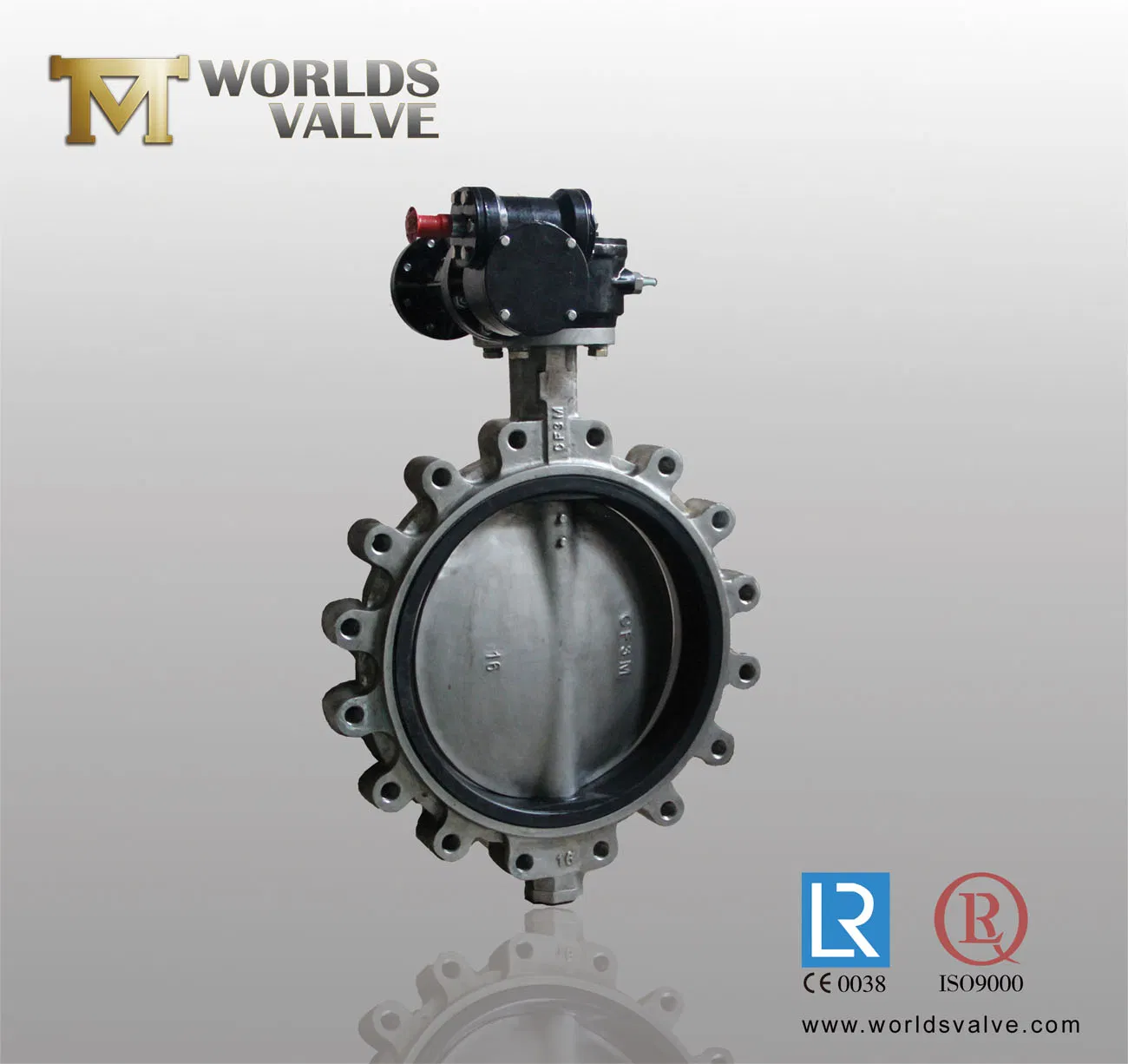

![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/964d30ec72b97f1704c2ffc67aa600f1.jpg)
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/d398d278792d812ff9f1954d3d6e85de.jpg)
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/14183cbc529ecf4a0dda989aa5728ab6.jpg)
** INTRODUZIONE DELL'AZIENDA
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/3200f612a7518aeb2c387d5ba0f748ee.jpg)
** Obiettivo dell'azienda: Servizio dell'OEM per la marca di fama mondiale della valvola
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/288e7bb35db0f3e985e593b2dc3e4e67.jpg)
** Abilità Di sviluppo & Di disegno -- SolidWorks, pro/E, AutoCAD ecc
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/76960fdc985e14109636cb6d3f8eebdb.jpg)
** & Inspection di misura di dimensione
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/87e98fb06b84ae431bd25e365429eab3.jpg)
** Gruppo di lavoro dell'Assemblea
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/89bb34783bdc1048130a58a0fe6c8a4d.jpg)
** Impaccando
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/cd9f02d6f54a983984f94c677d7f8801.jpg)
** Certificati -- Certificati di iso WRAS ACS del CE
![Stainless Steel SS304 SS316 CF8m CF8 Lug Butterfly Valves](https://img3.grofrom.com/towas/b2df8453ddc25d5fd0d52371280c2fbe.jpg)
